Free/Open hardware design.

LaRosa Engineering, under Noqsi Aerospace, ltd, has contributed FPGA designs for CCD Clock Sequencers developed at MIT. We are publishing the designs and documentation under a Creative Commons license.

Noqsi's Engineering page details ongoing engineering research at Noqsi. For a history/evolution of MIT CCD Clock Sequencers, click here.

This page details the logic design for an FPGA-based Sequencer, referred to on the last two pages of the above history/evolution document. The FPGA discussed here was designed from John Doty's CCD Clock Sequencer spec.

FPGA_Seq_2003.pdf provides a walk-through of the Sequencer VHDL design

Here are links to support documents:

EDCCD Xilinx Project
Sequencer Specification
Cypress CY7C1329 RAM Data Sheet

And some simulation outputs:

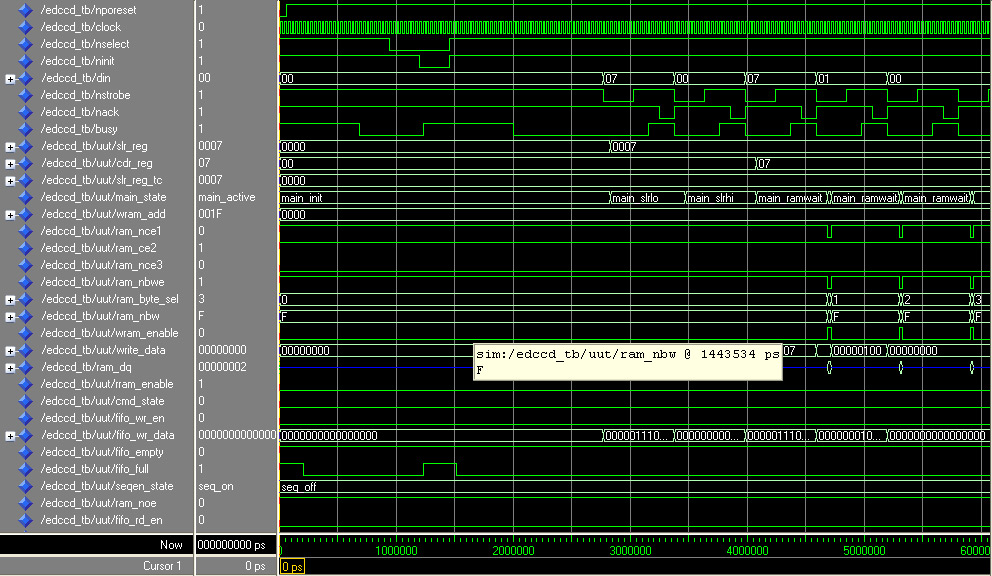

edccd_init_timing (INIT sequence and the start of the RAM loading)

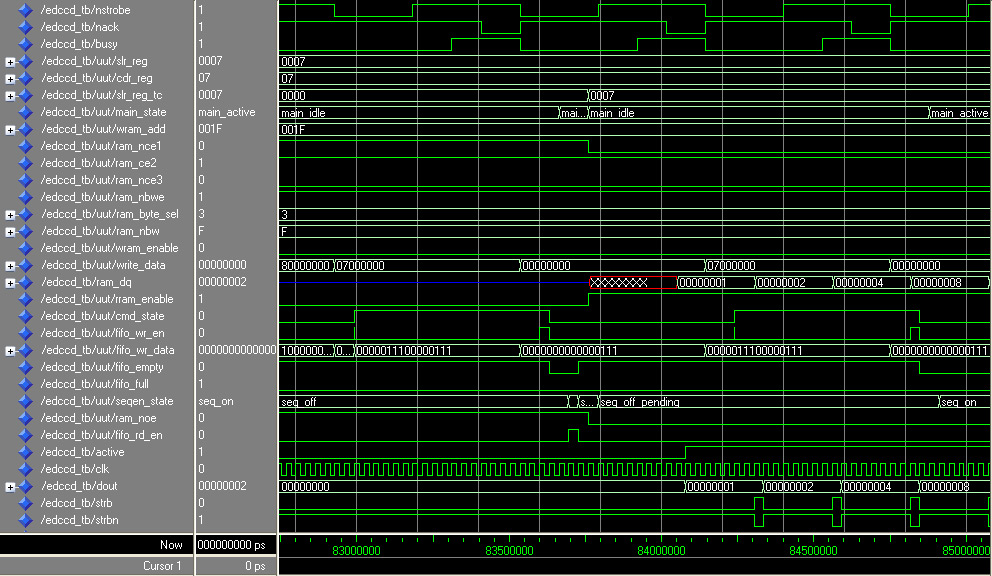

edccd_cmd_timing
showing the first two Command FIFO loads, and the Sequencer logic starting up as soon as the first Command has been loaded.

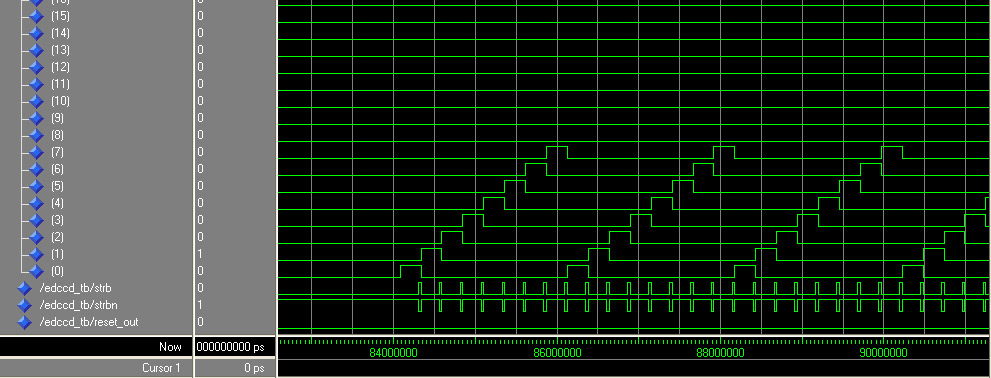

edccd_output_timing
showing the walking one’s pattern in the 8 least significant bits, along with the output CLK and STRB signals.
